Mobile stretch wrapping machine and stacker MA-1900.
Move, wrap, stack - all in one
Mobile stretch wrapping machine and stacker MA-1900.
Move, wrap, stack - all in one
Previous
Next
Envolvedora Móvil y Apilador MA-1900
Mobile stretch wrapping

And stacker MA-1900.

Move, wrap, stack - all in one.

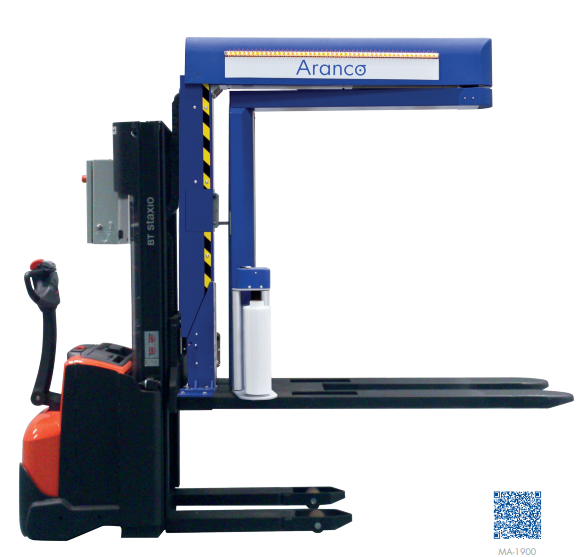

The MA-1900 mobile pallet stretch wrapping machine with built-in stacker is a rotating arm pallet wrapping machine assembled on a pallet truck. It is a machine designed and manufactured by us in Spain.

Specially designed for the Sie+ Service, the machine is equipped with a stacker, which allows to pick up and put down loads stacked at height, with a maximum lifting weight of 600 kg.

It uses our high performance stretch films, with greater load retention capacity (memory) and environmental improvement by reducing waste (-50%).

It allows wrapping up to 40 pallets per hour of any type of load, including unstable pallets, picking pallets, pallets with different heights, etc. With a useful wrapping height of 1.9 meters, this stretch wrapping machine allows numerous wrapping cycles and different wrapping options to be programmed.

The machine is equipped with a laser device that detects the presence of people or objects near the turning radius of the wrapping arm and stops it automatically to avoid impacts.

The stretch wrapping machine is permanently connected remotely to our central machine management system, which allows us to prevent breakdowns, detect possible problems in advance, etc.

The Sie+ Service includes a preventive maintenance plan for the machine, on-site assistance within 24/48 hours and instant remote assistance throughout Spain and Portugal.

Remote-connected wrapping machines.

Mobile Wrapping

Advantages.

Mobile stretch wrapping machine and stacker MA-1900

Mobility: the machine can be moved anywhere in the warehouse.

Stacker: for vertical pallet movements.

Cost saving: our high-performance films specially developed for this stretch wrapping machine guarantee demonstrable cost saving.

Waste reduction: the wrapping machine optimizes and reduces the use of stretch film (approx. 50%), and guarantees an optimal securing of the wrapped goods during transport.

High autonomy: la batería a plena carga permite trabajar durante 6-7 horas.

Safety: the machine is equipped with a laser device that detects the presence of people or objects near the turning radius of the wrapping arm and stops it automatically to avoid impacts.

Immediate technical response: the stretch wrapping machine is remotely connected to our machine control center.

Technical data.

Power supply voltage

230 VAC – 24 Vdc

Installed power

2.3KW

Maximum rotation speed

23 rpm

Carriage up/down speed

0,074 m/s

Weight

900 Kg

Useful wrapping height

1.939 mm

Max. pallet dimensions

1.2000mm x 1.000mm

Battery charging time

6-7 hours

Production according to cycles

20-40 pallets / hour

Maximum lifting weight

600 Kg

Donwload.
