Envolvedora Fija Automática FA-2200
FIXED WRAPPING MACHINE

Automatic FA-2200.

Compact automation: FA-2200.

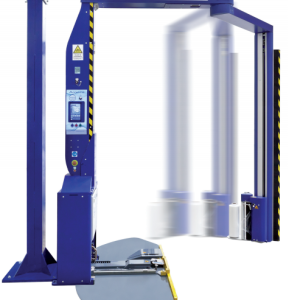

The FA-2200 automatic fixed machine is a rotary arm pallet wrapping machine. It is a machine designed and manufactured by us in Spain.

Its installation does not require any previous work. The auxiliary column (optional) allows the wrapping machine to be installed anywhere in the warehouse.

The stretch wrapping machine itself places the film on the pallet and cuts it at the end of the wrapping process.

It is specially designed for WaaS Service and it uses our high-performance stretch films, with greater load retention capacity (memory) and environmental improvement due to a reduction (-50%) of waste.

Permite envolver hasta 40 palets/hora de cualquier tipo de carga, incluso palets inestables, de picking, con diferentes alturas, etc. Dispone de pantalla táctil con la que se pueden programar numerosos ciclos y opciones diferentes de enfardado.

The machine is equipped with a laser device that detects the presence of people near the turning radius of the wrapping arm and stops it automatically to avoid impacts.

The stretch wrapping machine is permanently connected remotely to our machine management center, which allows us to prevent breakdowns, detect possible incidents in advance, etc. The WaaS Service includes a preventive maintenance plan for the machine, on-site assistance within 24/48 hours and instant remote assistance throughout Spain and Portugal.

Remote-connected wrapping machines.

FIXED WRAPPING MACHINE

Advantages.

Compact automation: FA-2200.

No construction work required: thanks to its double fixing bracket and the auxiliary column (optional), it can be installed anywhere in the warehouse.

Cost saving: nuestros films de alto rendimiento especialmente desarrollados para el Servicio SIEplus garantizan un demostrable ahorro económico.

Waste reduction: the wrapping machine optimizes and reduces the use of stretch film (approx. 50%), and guarantees an optimal securing of the wrapped goods during transport.

Safety: the machine is equipped with a laser device that detects the presence of people or objects near the turning radius of the wrapping arm and stops it automatically to avoid impacts.

Immediate technical response: the stretch wrapping machine is remotely connected to our machine control center.

Technical data.

Power supply voltage

Monofásico 230 VC 50 Hz

Installed power

2.3KW

Maximum rotation speed

23 rpm

Carriage up/down speed

0,074 m/s

Weight

440 Kg

Machine height

2.590 mm

Useful wrapping height

2.200 mm

Max. pallet dimensions

1.2000mm x 1.000mm

Minimum perimeter zone

2.900mm x 2.900mm

Production according to cycles

20-40 pallets / hour
