Envolvedora Móvil Eléctrica ME-2200
Mobile Wrapping

ME-2200 electric wrapping machine.

The stretch wrapping machine that goes with you, take it wherever you go.

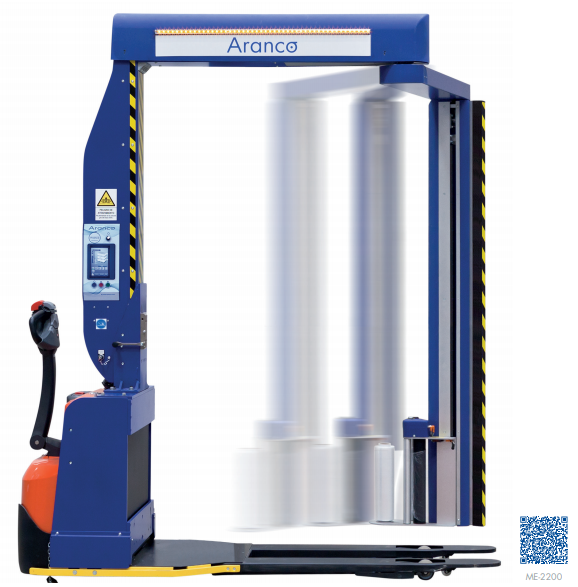

The ME-2200 electric mobile pallet stretch wrapping machine is a rotating arm pallet wrapper mounted on an electric pallet truck. It is designed and manufactured by us in Spain and is CE compliant.

Specially designed for the Sie+ Service, it uses our high-performance stretch films, with greater load retention capacity (memory) and environmental improvement due to a 50% reduction in waste.

It allows wrapping up to 40 pallets per hour of any type of load, including unstable pallets, picking pallets, pallets with different heights, etc.

It has a touch display to program numerous cycles and different wrapping options.

The stretch wrapping machine is permanently connected remotely to our central machine management system, which allows us to prevent breakdowns, detect possible problems in advance, etc.

The machine is equipped with a laser device that detects the presence of people near the turning radius of the wrapping arm and stops it automatically to avoid impacts.

The Sie+ Service includes a preventive maintenance plan for the machine, on-site assistance within 24/48 hours and instant remote assistance throughout Spain and Portugal.

Remote-connected wrapping machines.

Mobile Wrapping

Advantages.

The stretch wrapping machine that goes with you, take it wherever you go.

Mobility: the machine can be moved anywhere in the warehouse.

Cost saving: our high-performance films specially developed for this stretch wrapping machine guarantee demonstrable cost saving.

Waste reduction: the wrapping machine optimizes and reduces the use of stretch film (approx. 50%), and guarantees an optimal securing of the wrapped goods during transport.

High autonomy: between 100 and 150 pallets wrapped depending on the wrapping cycle and path of the wrapping machine.

Safety: the machine is equipped with a laser device that detects the presence of people or objects near the turning radius of the wrapping arm and stops it automatically to avoid impacts.

Immediate technical response: the stretch wrapping machine is remotely connected to our machine control center.

Technical data.

Power supply voltage

230 VAC – 24 Vdc

Installed power

2.8KW

Maximum rotation speed

23 rpm

Carriage up/down speed

0,074 m/s

Weight

900 Kg

Machine height

2.624 mm

Useful wrapping height

2.200 mm

Max. pallet dimensions

1.2000mm x 1.000mm

Battery charging time

6-7 hours

Production according to cycles

20-40 pallets / hour

Maximum lifting weight

1300 Kg.

Donwload.
